VICTOR 890G+ Digita Multimeter High Precision 6000 counts Manu Range Tester True RMS Intelligent Anti-burning NCV Universal Multimeter
Features:

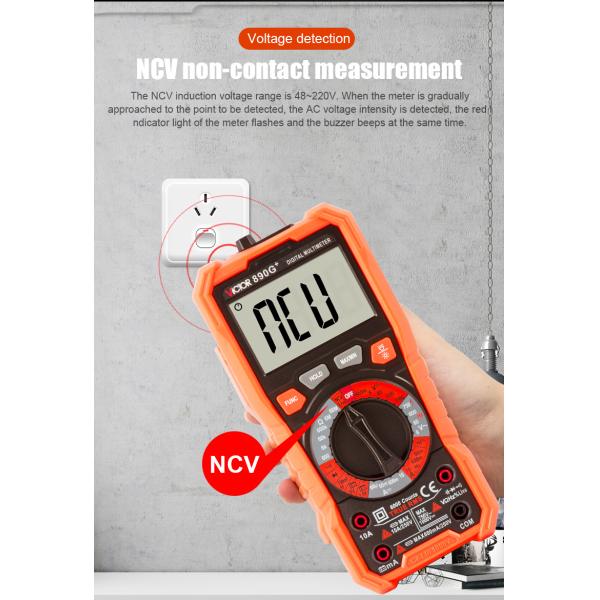

This 890G Multimeter Wide Measuring Range: for measuring DC/AC voltage, DC/AC current, Resistance, Capacitance, Diode test, NCV test, Live test, Frequency, etc.
2.7" Large LCD Display: 59*36mm LCD screen with large digital-readout and backlight for clear reading.
Auto Power-off: 15mins automatic shutdown if there's no operation, more power saving.
Portable Design: bracket at the back for supporting multimeter, and it also can be hanging on the wall.

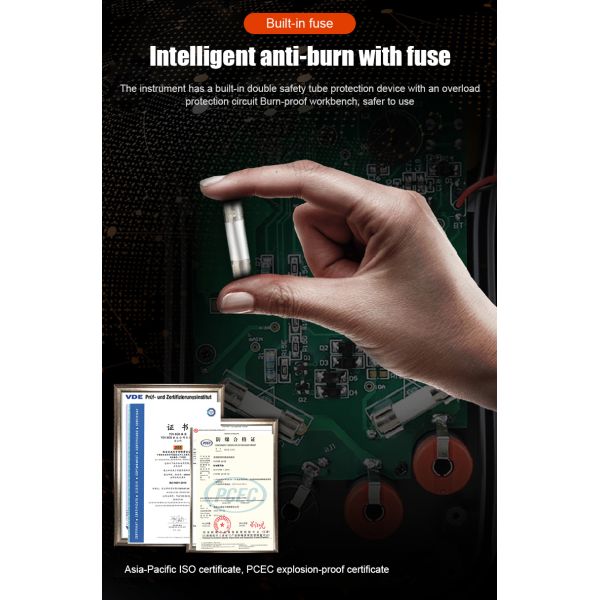

Overload Protection: built-in double fuse, full protection for safe operation.
Other Functions: Bargraph, Max/Min hold, Data hold, Continuity, True RMS, Low battery indication, Double color backlight, Input jack LED indicate, work light, etc.
Specifications:
Material: ABS
Display: 6000 counts
Range: Manual range
Display: LCD
Bandwidth: 1kHz
Safety Rating: EN61010-1, -2-030 EN61010-2-033, EN61326-1 CAT III 1000V, CATIV 600V
Package List:
1 * Digital Multimeter
1 * Pair of Test Lead
1 * Manual (English)
Techincal Data
| Basic function | Range | Accuracy |
| VICTOR 890G+ |
| DCV | 600mV/6V/60V/600V/1000V | ±(0.5%+3) |
| ACV | 6V/60V/600V/750V | ±(0.8%+5) |
| DCA | 60μA/60mA/600mA/10A | ±(1.2%+3) |
| ACA | 60mA/600mA/10A | ±(1.5%+3) |
| Resistance | 600Ω/6kΩ/60kΩ/600kΩ | ±(1.0%+3) |
| 6MΩ/60MΩ | ±(1.5%+3) |
| Capacitance | 10nF/100nF/1000nF/10μF/100μF/1000μF | ±(4%+5) |
| 10mF/100mF | ±(5%+5) |
| Frequency/duty cycle | 10Hz/100Hz/1000Hz/10kHz/100kHz/1000kHz | ±(1.0%+3) |
| 10MHz/1~99% | ±(3.0%+3) |
| Special function | |
| NCV test | | √ |
| Live wire test | | √ |
| Battery test | | √ |
| Input terminal prompt | | √ |
| High voltage prompt | | √ |
| Diode test | | √ |
| Continuity alarm | | √ |
| Low battery | | √ |
| Backlight | | √ |
| Flashlight | | √ |
| Auto power off | | √ |
| Function protection | | √ |
| shakeproof protection | | √ |
| Input impedance | | 10MΩ |
| ACV frequency response | | 10Hz ~ 1kHz |
| Operation method | | Manual range |
| Display | | 6000 count |
| Supply | | Battery 2*1.5V AA |
